Rail trolleys for rail track maintenance - Vaia Car

Vaia Car spa - tecnologie ferroviarie




/

/

/

/

/



Rail Trolleys > MOD. ETSM-700

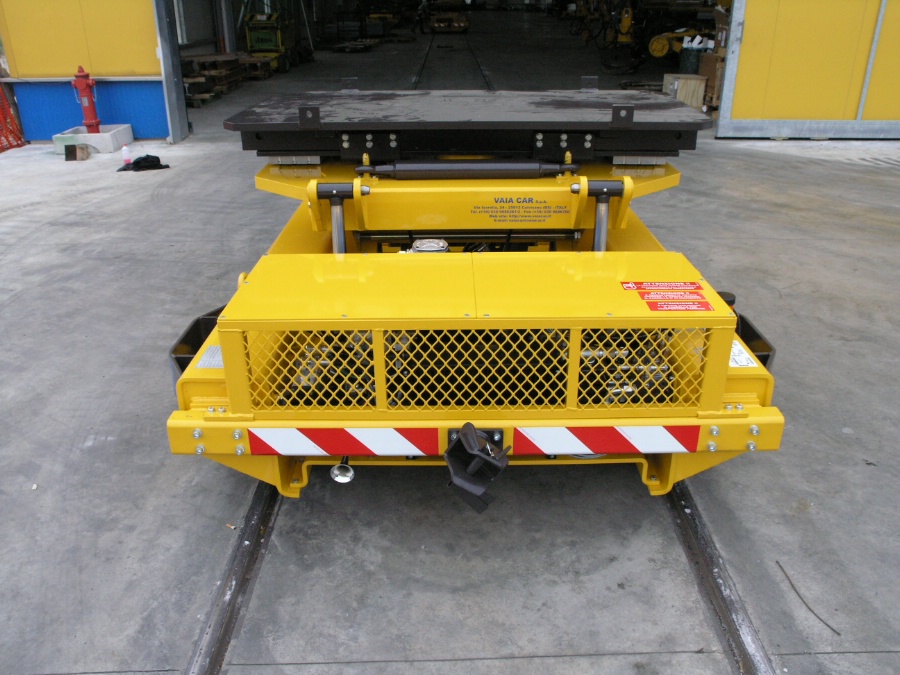

Rail Trolleys MOD. ETSM-700

  Download area

Download the file
Technical data



Engine:


Type LOMBARDINI
Cycle DIESEL
Injection DIRECT
Engine size 1248cc
N° cylinders 2
Cooling BY AIR
Power 21 KW (28 HP) a 3000 g/1'
Specific consumption 262 g/KWh a 3000 g/1'
Engine torque 67 Nm a 2000 g/1'

  Contact us!

In contrast with the ETSM-400 trolley, these trolleys differ in total mass and in their load capacity.

The total mass of this rail trolley is 6,000 kg (6 Ton). The trolley has a load capacity of 70,000 kg (70 Ton).
